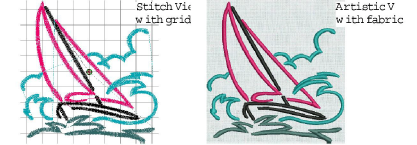

The Save Design as Image command allows you to save design images for use with your fabric and garment application. The resulting image is exactly as it appears on screen, including connectors, stitch cursor, grid, as well as any backdrop. The hoop, however, does not appear in the image file even if it intersects objects within the design.
Switch to Embroidery Canvas.

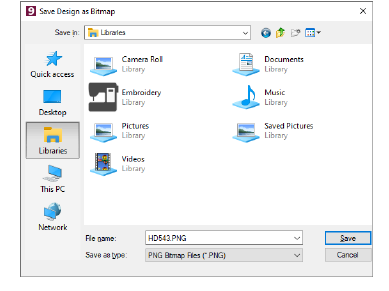

With the design still open in the workspace, select File > Save Design as Bitmap. The Save Design as Bitmap dialog opens. By default, PNG is the selected file type.
Optionally, deselect the Make Background Transparent option as required.
This option is only available with PNG. When checked, the grid and background are excluded from the saved image and only design objects appear.
Click Save. The design is saved as an image file.
Zoom factor has no bearing on the image file which is always saved at 1:1 (real size).
