Remove fabric or color from patches

You can remove colors or fabrics from open-object appliqué at any stage.

To remove fabric or color from patches...

1Double-click the open-appliqué object. The Appliqué Properties dialog opens.

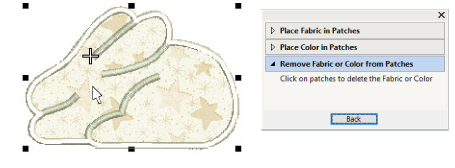

2Click the Remove Fabric or Color option. The docker changes to display this panel.




3Move the cursor over the design area. A white outline appears around any closed area over which the cursor passes.

4Click an outlined area which is currently filled. The patch fabric or color is replaced with white hashing and all associated secondary objects removed.




The fabric or color is also removed from the Used Fabrics and Colors palette if this was the only instance of that fabric or color.

5Select other areas as required to remove more patches.

6Click Back when complete.
